| MODEL | SP-201/800W |
| COLOR PRINTED | 2 |
| PRINTNG SPEED (MAX.) | 60 M / MIN |
| PRINTNG WIDTH | 5 - 80 CM |
| FILM PASSING WIDTH (MAX.) | 5 - 100 CM |
| PRINTNG LENGTH | 20 - 110 CM |
| PRINTNG POSSIBILITY | 0 + 2, 1 + 1 |
| MAIN MOTOR | 3 HP |
| HEATER | 1.5 × 6 PCS |
| BLOWER FOR HEATER | 1/2 HP × 1 PC, 3 HP × 1 PC |
| HYDRAULIC PUMP MOTOR | 1 HP |
| INK ROLL MOTOR | 1/4 HP |
| EDGE POSITION CONTROLLER (EPC) | 1/2 HP × 1 SET |
| DC REWINDER MOTOR | 2 HP |
|
UNWINDER UNIT ELEVATOR MOTOR UNWINDER MOOR |
2 HP × 1 SET 1 HP × 1 SET |
| WINDING SYTEM | FRICTION TYPE |
|
SKY CRANE UP & DOWN MOTOR FORWARD & BACKWARD MOTOR |
|
| POWER CONSUMPTION | 20 KW |
| MACHINE DIMENSION (CM) | 450 × 220 × 235 CM |
| NET WEIGHT | 5800 KGS |
| GROSS WEIGHT | 6600 KGS |
| LOADING VOLUME (CM) |
225 × 225 × 225 - MAIN BODY 225 × 225 × 225 - WINDING UNIT |
SENCAR Gives You Professional Service

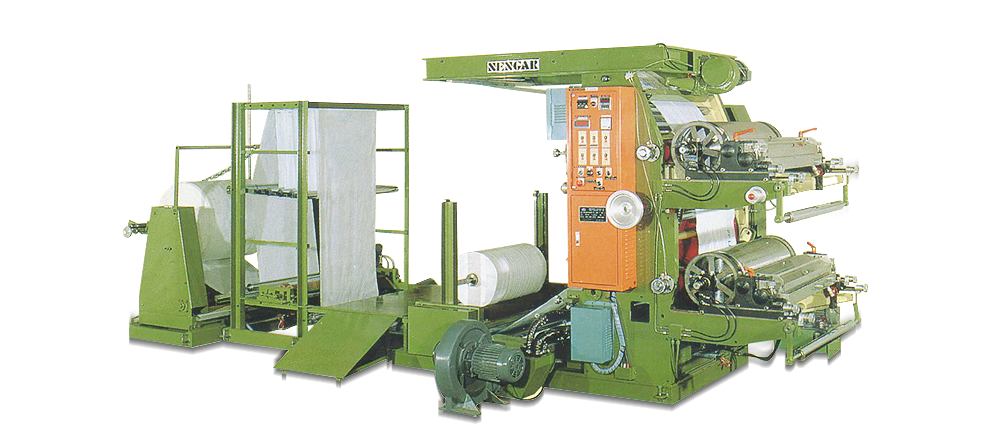

2 Colors Flexographic Printing Machine for Woven Bag
2 COLORS
