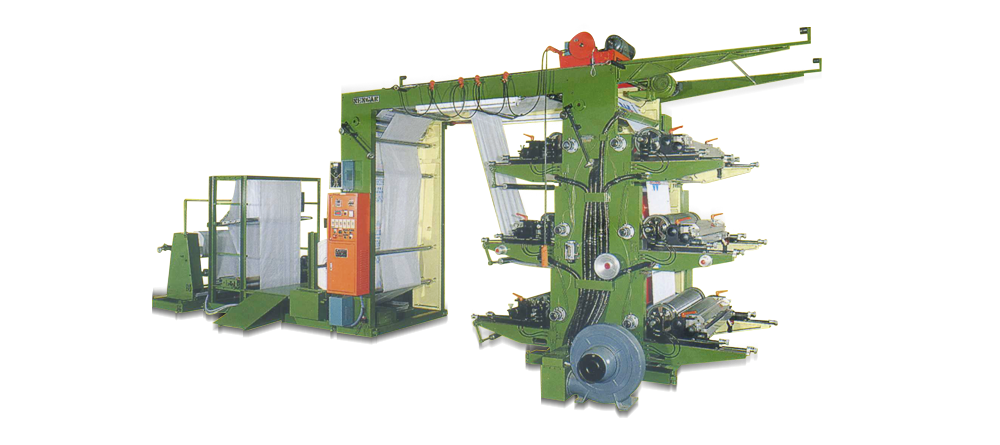

6 Colors Flexographic Printing Machine for Woven Bag
6 COLORS
6  Colors Flexographic Printing Machine for Woven Bag
MODEL SP-601/800W
COLOR PRINTED 6
PRINTNG SPEED (MAX.) 60 M / MIN
PRINTNG WIDTH 5 - 80 CM
FILM PASSING WIDTH (MAX.) 5 - 100 CM
PRINTNG LENGTH 20 - 110 CM
PRINTNG POSSIBILITY 0 + 6, 1 + 5, 2 + 4, 3 + 3
MAIN MOTOR 7.5 HP
HEATER 1.5 × 13 PCS
BLOWER FOR HEATER 1/2 HP × 1 PC, 5 HP × 1 PC
HYDRAULIC PUMP MOTOR 1 HP
INK ROLL MOTOR 1/4 HP
EDGE POSITION CONTROLLER (EPC) 1/2 HP × 1 SET
DC REWINDER MOTOR 2 HP
UNWINDER UNIT
ELEVATOR MOTOR
UNWINDER MOOR
2 HP × 1 SET
1 HP × 1 SET
WINDING SYTEM FRICTION TYPE
SKY CRANE
UP & DOWN MOTOR
FORWARD & BACKWARD MOTOR

1 HP
1/2 HP
POWER CONSUMPTION 30 KW
MACHINE DIMENSION (CM) 780 × 220 × 320 CM
NET WEIGHT 7500 KGS
GROSS WEIGHT 8700 KGS
LOADING VOLUME (CM) 285 × 225 × 225 - MAIN BODY
285 × 225 × 225 - WINDING UNIT
