| MODEL | SG45-MP64 | SG55-MP84 | SG65-MP128 | SG75-MP168 | |
| Feature | Material to Be Used | PP or PE | |||
| Dia. of Filament | 0.10 - 0.25 m/m | 0.15 - 0.30 m/m | 0.25 - 1.00 m/m | 0.30 - 1.0 m/m | |
| Extrusion Capacity (KG / HR) | 8 - 15 | 15 - 25 | 25 - 40 | 30 - 50 | |
| Extruder | Screw Dia. | 45 m/m | 55 m/m | 65 m/m | 75 m/m |
| L/D Ratio | 26 : 1 | 26 : 1 | 26 : 1 | 26 : 1 | |
| Driving Motor (Var.Spd.) | 10 HP | 15 HP | 20 HP | 30 HP | |
| Heating Capacity | 12 KW | 15 KW | 18 KW | 22 KW | |
| Screw Material | SCM-4 steel with ntrogen treatment | ||||
| Cylinder material | SACM-1 steel with ntrogen treatment | ||||
| Circular-Die | Nozzle Plate | 2 PCS | 2 PCS | 2 PCS | 2 PCS |
| Control panel | Type | Dependence Type | |||
| Auto-Thermo Controller | 4 Points | 4 Points | 5 Points | 5 Points | |
| Cooling Device | Quench Bath | Made of stanless steel | |||
| Take-Off Unit A | Driving Motor | 2 HP | 3 HP | 5 HP | 5 HP |
| Take-Off Speed (M/min) | 10 - 25 | 10 - 25 | 10 - 25 | 10 - 25 | |
| Take-Off Rollers | 270 mm ψ × 300 mm × 7 | 270 mm ψ × 350 mm × 7 | 270 mm ψ × 400 mm × 7 | 270 mm ψ × 500 mm × 7 | |
| Press Roller | 1 PC | 1 PC | 1 PC | 1 PC | |
| Stretching Device | Type | PE (Hot water type). PP (Hot air type) | |||
| Heater Capacity | 10 KW | 14 KW | 14 KW | 16 KW | |
| Take-Off Unit B | Driving Motor | 2 HP | 3 HP | 5 HP | 5 HP |
| Take-Off Speed (M/min) | 40 - 90 | 40 - 90 | 40 - 90 | 40 - 90 | |
| Take-Off Rollers | 270 mm ψ × 300 mm × 7 | 270 mm ψ × 350 mm × 7 | 270 mm ψ × 400 mm × 7 | 270 mm ψ × 500 mm × 7 | |
| Press Roller | 1 PC | 1 PC | 1 PC | 1 PC | |

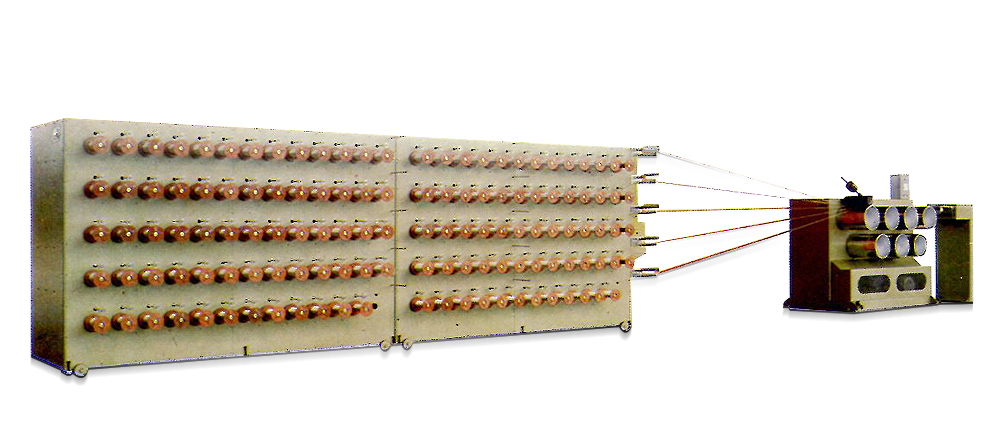

| Take-Up Winders | No. Of Spindles | 64 × 1 | 88 × 1 | 128 × 1 | Depends on flament's dia. |
| Winding Motor | 1.2 KG/CM × 64 | 1.2 KG/CM × 88 | 1.2 KG/CM × 128 | ||
| Traverse Motor | 2 HP Hydralic Power | 1 Unit | |||
| Waste Filament Collector | 20 KG/CM × 1 PC | ||||

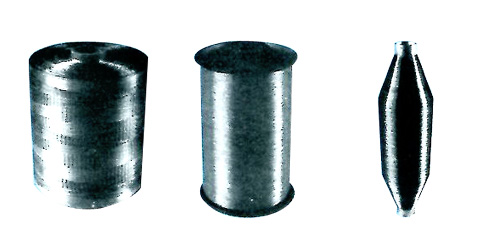

PP / PE Monofilament can be used for making rope, mosquito curtain, fish nets, brushes, brooms, and other industrial products.
