| Technical Details | |
| Speed | Max. 160 tubes / min. |
| Type of Tube | as shown below |
| Tube Length (L)* | 20" - 45" (508-1,143 mm) |
| Tube Width (W)(flat tube) | 13" - 24" (330-610 mm) |
| Tube Width (W)(gusset tube) | 13" - 19 1/2" (330-495 mm) |
| Gusset Width(GW) | 3" - 6" (76-152 mm) |
| No. of Piy | upto 6 |
| Paper Roll Width | Max. 48" (1.215 mm) |
| Paper Roll Dia** | Max. 43 1/4" (1,100 mm) |
| No. of printing Colors | 1-3 colors, at option** |
| Motor Total HP | 34 HP Heater 9kw |
| Net Weight | approx. 17.5 tons (3-color type) |
| Gross Weight | approx. 20.0 tons (3-color type) |
| Measurements | approx. 2,400 cft (3-color type) |
| Packing Size | About 55 cu. meters |
The design og our PP-P Bag making Machine is for integral operation from printing, binding, forming, and cutting to conveying for producing the various multi-wall Bags.

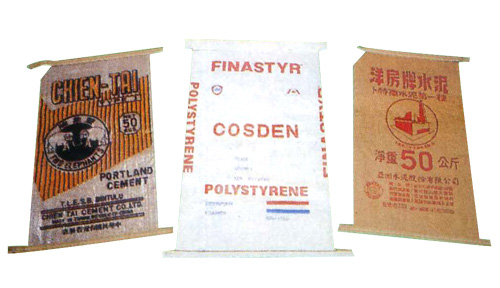

Designed for production of max. 6-play gusset of flat tubes at the max. speed of 160 tubes per minute. Valve type tubes (for cement bags ) and open mouth tubes (for fertilizer, sugar, flour, chemicals, grain, etc. ) can be produced.
